Self-dumping crane hopper

Model: BWB-200

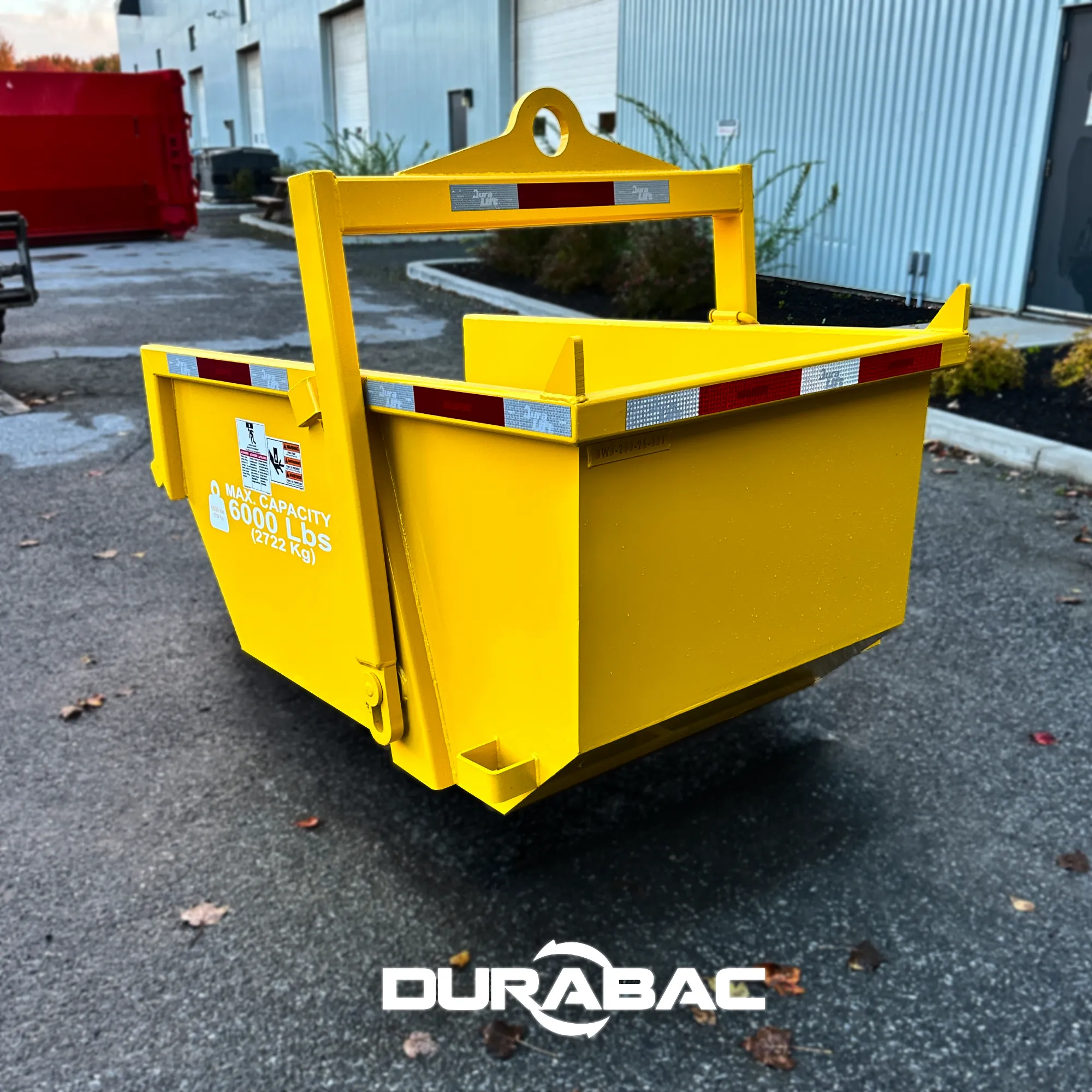

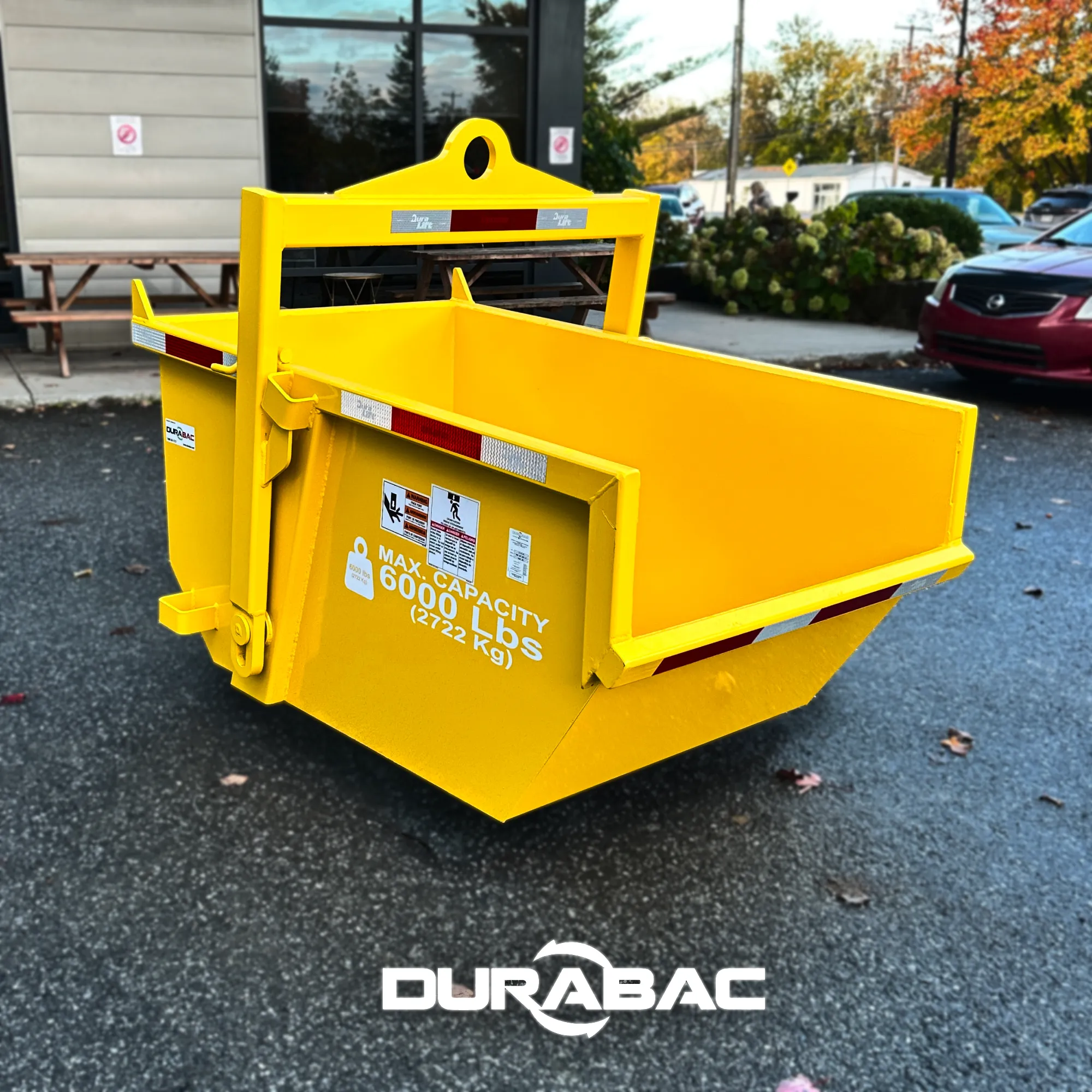

Self-dumping crane hopper

2-cubic-yard self-dumping crane hopper made of heavy-duty steel for increased durability. Ideal for collecting, storing, and dumping bulk materials such as soil, concrete, metal, etc.

Model: BWB-200
Download the brochure
Description
Technical data
Specifications
Options
Video
Description

Discover our self-dumping crane hopper for bulk waste. It has a capacity of 2 cubic yards, a carrying arm, and a lifting hook. Made of heavy-duty steel, it is sturdy and efficient for collecting, storing, and dumping bulk materials such as soil, concrete, waste, and recyclable materials. This waste hopper is designed to be used with a crane or overhead crane. It automatically empties, which allows for quick and effortless waste removal.

Technical data

DIMENSIONS BWB-200
Overall width (A) 50″
Overall Depth (B) 71″
Overall height (C) 55 1/4″
Opening height (D) 19 1/4″
Lifting hook hole diameter (E) 2″
CAPACITY 2 cubic yards

* The parameters and dimensions given above are for guidance only. Actual dimensions may differ.

Specifications

General specifications

  • Overall dimensions: 71″ long x 50″ wide x 55 1/4″ tall
  • Maximum capacity: 6,000 lb.
  • Weight: 869 lb.

Bin

  • Walls: 3/16″ steel
  • Upper rim: 3″ x 2″ x 1/4″ tube
  • Floor: 1/4″ steel
  • Carrying arm: 4″ x 4″ x 1/4″ tube
  • Lifting hook: 1″ steel plate with Ø2″ hole

Finish

  • Degreasing of the surfaces and a complete high pressure steam wash;
  • (1) Coat of industrial primer 1.5 mil dry
  • (2) Coats of industrial enamel 1.5 mil dry
  • Color: Customer’s choice

Options

For information about options, contact sales department :
800 565-1723 or [email protected]
