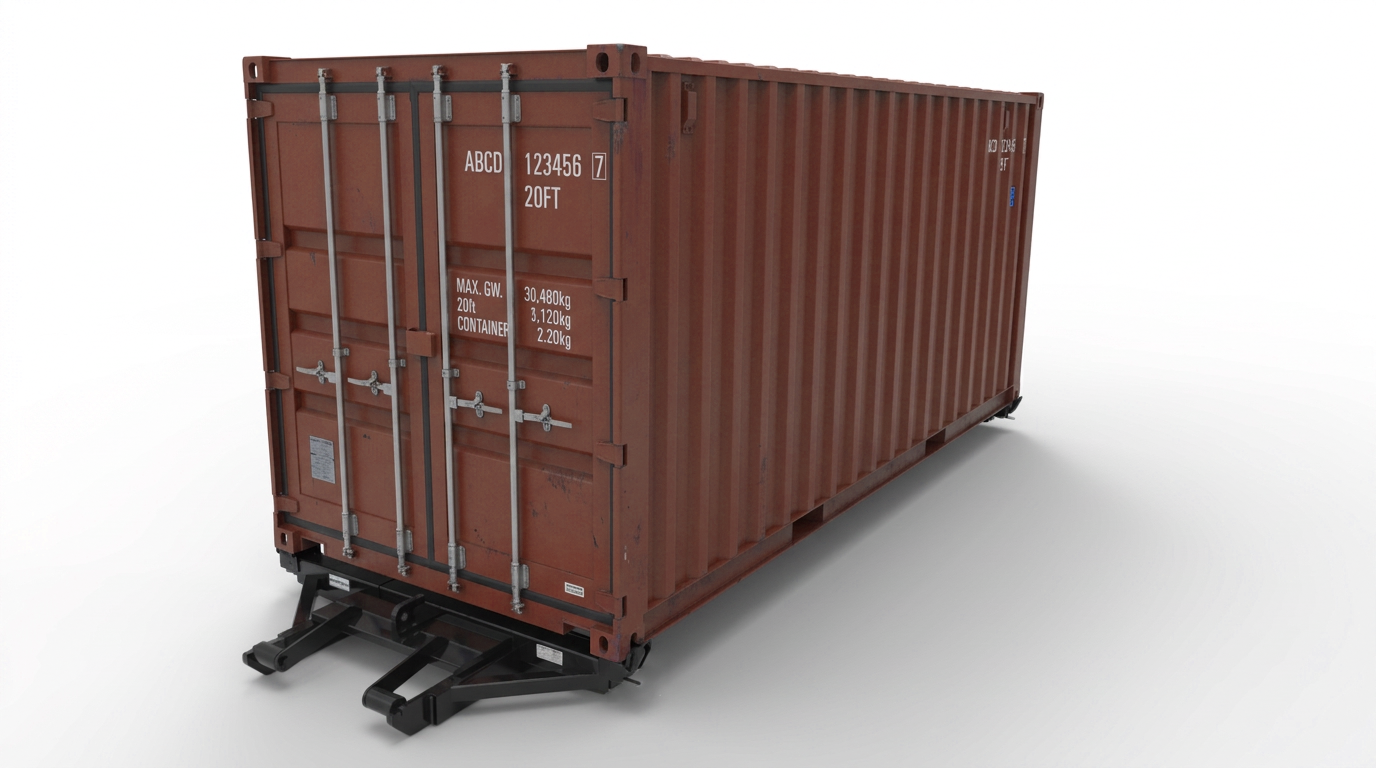

Roll-Off Subframe Platform for Shipping Container

Model: PRO-208

Roll-Off Subframe Platform for Shipping Container

Heavy-duty roll-off platform designed to accommodate a shipping container. Its steel tube construction includes a J-hook, two rollers, and reinforced supports equipped with Twistlock locking devices.

Model: PRO-208



Download the brochure



Download the installation manual

Get your price

Description

Durabac’s Roll-Off Subframe Platform is a heavy-duty roll-off platform designed to accommodate a shipping container. It combines a structural steel tube frame with reinforced supports equipped with Twistlock locking devices.

Its construction includes steel longitudinal rails and crossmembers, a J-hook manufactured from 50W steel plate, and two rollers.

The finish consists of one coat of industrial primer and two coats of industrial enamel. The standard color is black.

Technical data

Overall Length (in.)	Overall Width (in.)	Overall Height (in.)	Approx. Total Weight (lb)
273 1/4	102 1/4	13 1/4	1 875

* The parameters and dimensions given above are for guidance only. Actual dimensions may differ.

Specifications

Structure

Longitudinal rails: 6 in. × 3 in. × 1/4 in. steel tubing
Crossmembers: 3 in. × 3 in. × 1/4 in. steel tubing

J-Hook

1 1/4 in. 50W steel plate

Rollers

(2) rollers, 4 in. diameter × 6 in. long

Supports

6 in. × 6 in. × 1/2 in. steel tubing
Reinforcements and Twistlock locking devices

Finish

(1) coat of industrial primer, 1.5 mil dry film thickness
(2) coats of industrial enamel, 1.5 mil dry film thickness
Standard color: Black
