One Configuration for Multiple Collection Needs

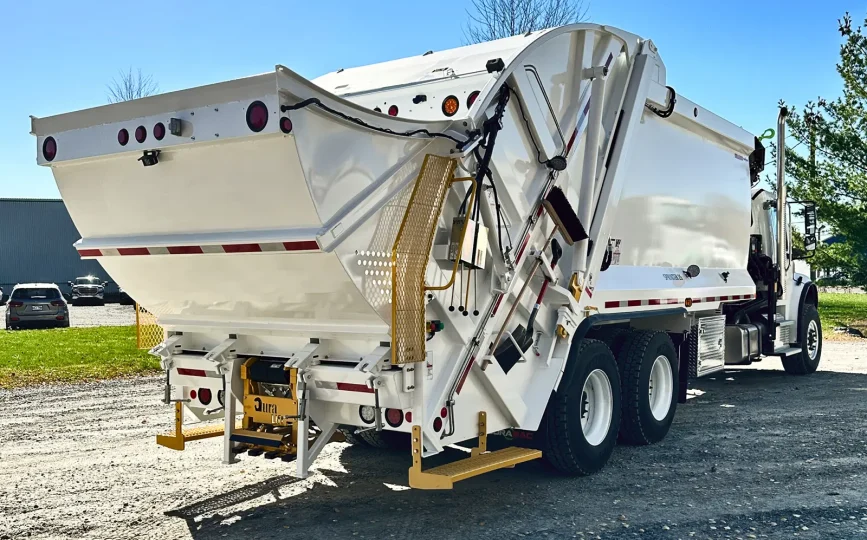

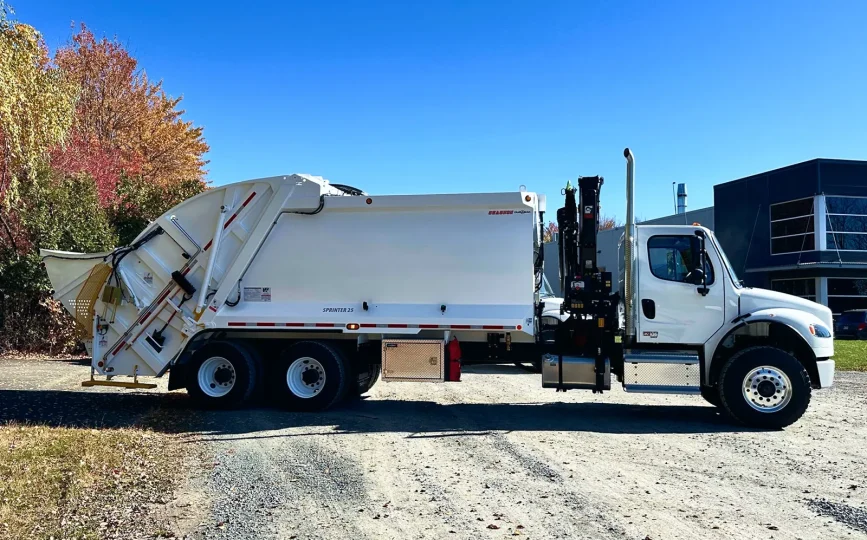

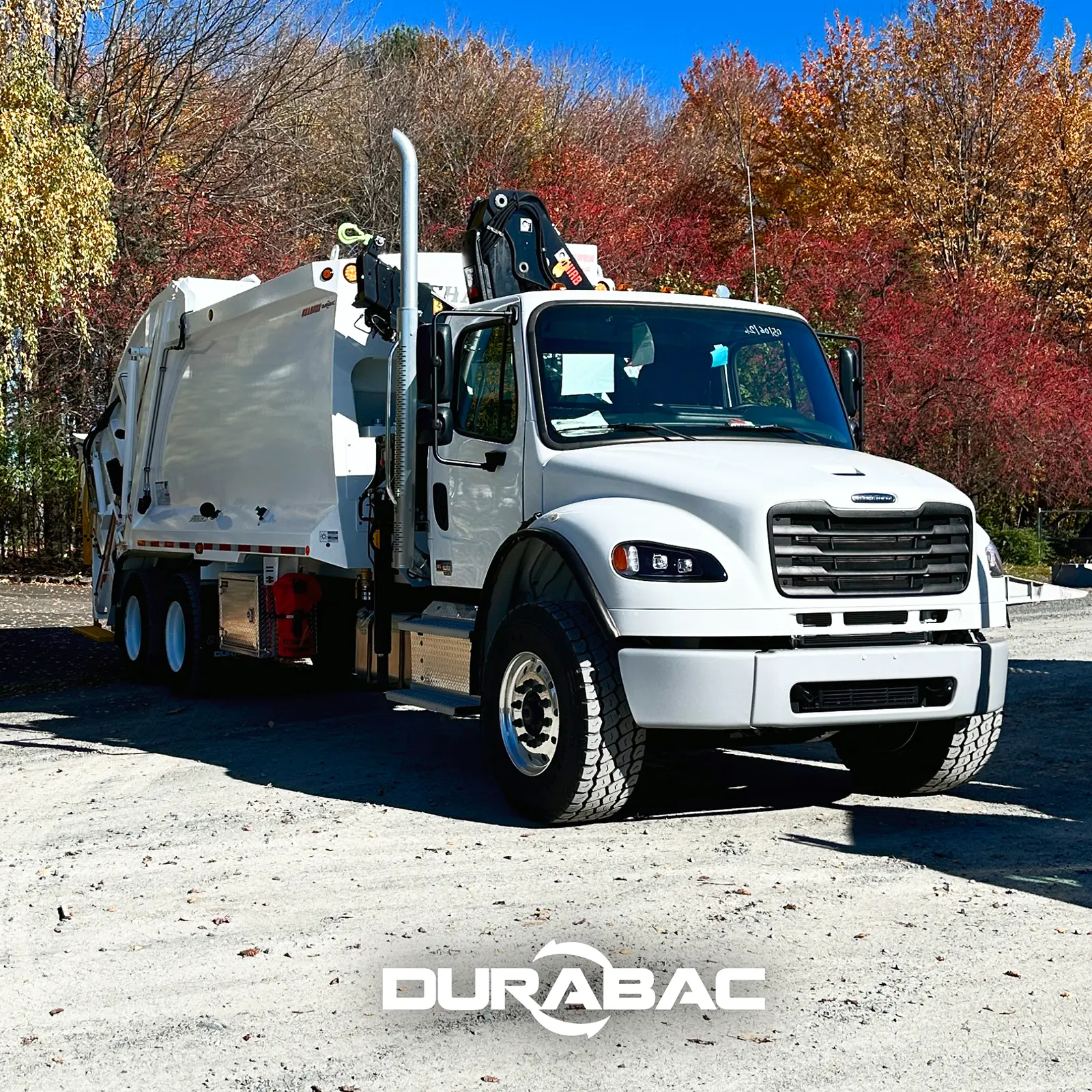

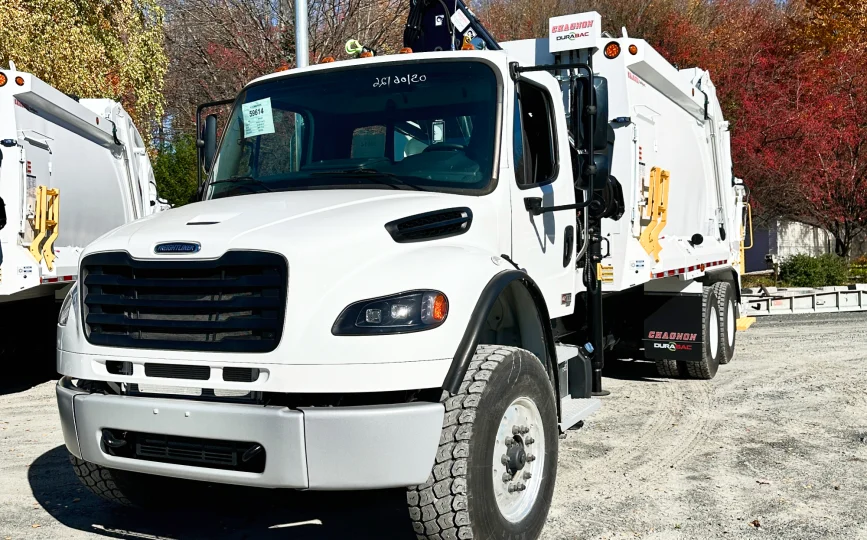

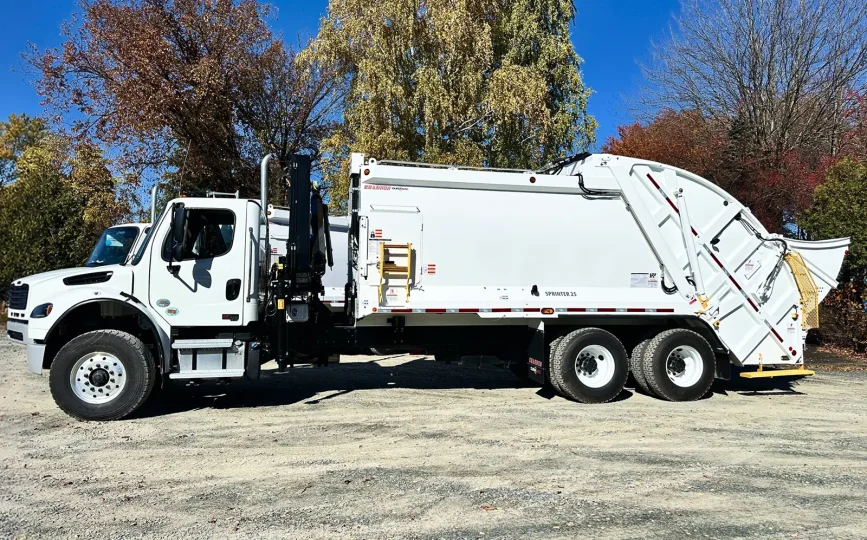

Durabac built two Chagnon Sprinter rear-load refuse trucks with cranes for Armtruck Limited. Each unit combines a 25-cubic-yard body, crane loading and a DURALIFT cart tipper.
Each truck features a heavy-duty hydraulic hopper made of 1/8-inch Hardox steel, designed to receive waste from semi-underground containers and C&D Bagster-type bags.
HIAB Crane and DURALIFT Cart Tipper
The HIAB X-102 B-3 crane features three hydraulic extensions, remote control and a hydraulic outreach of 32 ft 2 in. The installation includes the subframe, pump, power take-off and fully hydraulic stabilizers.
A DURALIFT cart tipper with a two-way rotator and American-style cart grip completes the configuration for cart collection. Together, these features allow one truck to handle different collection points.
Additional Equipment
Each unit also includes:
-
camera system with a 7-inch colour monitor and audio;
-
LED work lights, strobe lights and a dual-zone backup alarm;
-
crane and tailgate safety devices;
-
centralized lubrication block and an aluminum toolbox.
The bodies are finished in white, with safety-yellow hydraulic hoppers.
Main Configuration
| Equipment | Configuration per Truck |
|---|---|
| Body | 25-cubic-yard Chagnon Sprinter |
| Crane | HIAB X-102 B-3 with remote control |
| Hydraulic extensions and outreach | 3 extensions — 32 ft 2 in |
| Cart tipper | DURALIFT with two-way rotator and American-style grip |
| Hydraulic hopper | 1/8-inch Hardox steel |
| Rear hopper | 3-cubic-yard capacity |
